This Is Half 1/2 of Constructing a Sustainable Future with Thermal Power Networks by Marc Miller, Egg Geo, LLC
Trendy power calls for are rising, and the necessity for sustainable, environment friendly options to warmth and funky our houses and companies has by no means been higher. Enter Thermal Power Networks (TENs)—modern programs that distribute and reuse power to scale back prices, minimize emissions, and optimize efficiency.

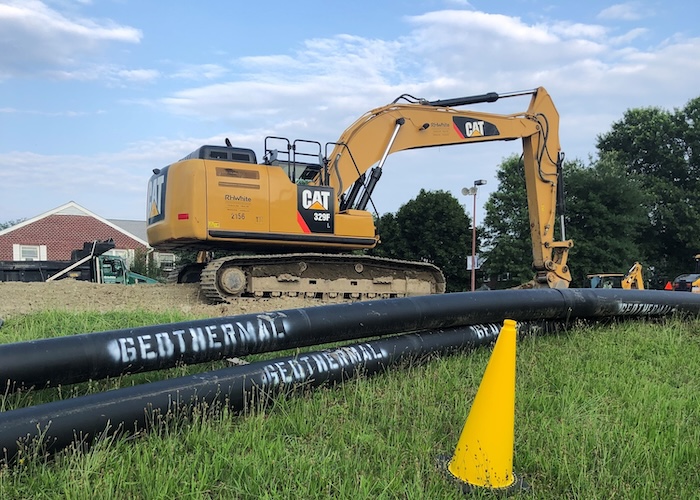

Picture: Eversource
This text explores the fundamentals of TENs, their advantages, and real-world purposes, serving to you perceive their potential to remodel power programs for the higher.
At their core, TENs are district power programs that use ambient temperature loops (ATLs) to share heating and cooling between buildings. These loops usually flow into a warmth switch fluid, akin to water or a water-propylene glycol combination, at a temperature vary of fifty°F to 85°F. By tapping into various thermal sources, akin to geothermal wells, waste warmth restoration, or pure water our bodies, TENs present sustainable, cost-effective alternate options to conventional heating and cooling programs.
Crucially, TENs optimize thermal sharing between stakeholders:
- Customers solely use thermal power.
- Prosumers each produce and devour power (e.g., workplaces that generate warmth and reuse it internally).
- Turbines provide thermal power into the community (e.g., geothermal wells or industrial processes).
Not like conventional programs like two-pipe or four-pipe setups of district heating and cooling situations, TENs use an ambient one-pipe loop that operates at variable fluid movement and temperatures as a substitute of counting on fixed temperature and variable flows. Right here’s what units TENs aside:
- One-Pipe Programs handle heating and cooling straight by various the movement of the fluid of various temperature circulating the loop.
- Effectivity in Pumping reduces power waste with self-balancing, easier designs that eradicate the necessity for balancing valves. This leads to considerably decrease working and set up prices.
- Pump Managed As an alternative of Valve Managed. No steadiness valves or management valves are used. Circulation by decoupled secondary loops is managed by a pump sized to ship the optimum movement.
Power Effectivity
TENs allow environment friendly thermal load sharing and shedding. For instance:
- Unused warmth from one constructing may be redistributed to a different, maximizing power use throughout the community.
- Water supply warmth pumps (WSHPs) leverage the steady temperature of ATLs, working with coefficients of efficiency (COP) rankings of three–5, which translate to decrease power consumption.
Price Financial savings
In comparison with conventional programs, TENs supply important monetary advantages:
- Decrease Set up Prices: With single-pipe programs, there’s much less piping, no balancing or management valves, and decreased labor for set up due to much less fittings, much less tooling and total much less pipe. Moreover there’s a single pipe measurement for the whole loop.
- Diminished Working Prices: Circulating water at ambient temperatures requires a lot much less pumping energy.
TENs are extremely scalable—there’s no restrict to the variety of stakeholders that may connect with an ATL. The caveat is that when sizing the loop it should be sized for the whole load to incorporate anticipated future growth. The extra buildings added, the higher the system operates as a consequence of improved thermal variety, which counterbalances the temperature cascade impact (the place fluid temperatures progressively change as they flow into).
Integrating geothermal power with TENs considerably reduces greenhouse fuel emissions. By shifting away from fossil-fuel-based heating programs, TENs pave the best way for a inexperienced and sustainable future.
The Eversource Geothermal Pilot in Framingham, Massachusetts, is a first-of-its-kind utility-scale networked geothermal mission. Launched in 2024, this technique connects 135 residential and business buildings, offering ground-sourced heating and cooling by an ambient temperature loop.
Key takeaways from this pilot embody:
- Diminished reliance on fossil fuels, changed with renewable power from earth’s pure thermal stability.
- Constructive suggestions from taking part stakeholders as a consequence of noticeably decreased power prices and environmental affect.
- A replicable mannequin for different communities to comply with.
“This mission… is enabling our staff to see how we will present providers in a very new method,” shared Invoice Akley, President of Gasoline Distribution on the mission’s groundbreaking.
No system is with out challenges, however TENs supply sensible options for frequent issues.
- Temperature Cascade Impact: Issues about progressive temperature modifications are resolved by system variety. Extra related stakeholders create a smoothing impact that distributes thermal masses extra evenly.
- Preliminary Funding: Trendy legislative incentives and group grants, like these funded by the U.S. Division of Power, are actually making upfront prices extra reasonably priced for communities adopting TENs.
Within the first illustration beneath, a TEN using its one-pipe Ambient Temperature Loop (ATL). The TEN consists of a geothermal supply/sink, an middleman warmth exchanger, a most important loop distribution pump, and three stakeholders: a cooling-dominant knowledge heart, a heating-dominant industrial plant, and an condo constructing with comparatively balanced heating and cooling masses.
Through the summer season, the community manages a complete warmth rejection of 540,000 BTU/h from the condo constructing and the info heart. Nonetheless, solely 140,000 BTU/h is transferred to the geothermal sink by way of the warmth exchanger (HX-1). This discount happens as a result of the community redirects extra warmth to the commercial plant, using it for productive functions slightly than rejecting it to the bottom.
In winter, the community requires a complete of 640,000 BTU/h to satisfy the heating calls for of the condo constructing and the commercial plant. Of this, 400,000 BTU/h is equipped by the geothermal supply by HX-1, whereas the remaining 240,000 BTU/h is offered by the info heart, offsetting the geothermal demand. This demonstrates the community’s capability to effectively steadiness masses by redistributing power amongst stakeholders.
Within the second instance beneath, we introduce a cooling-dominant load of roughly 10 tons (120,000 BTU/h) to the loop. The system is designed to take care of a leaving warmth exchanger temperature of 65°F and a return temperature of 75°F, preserving a ten°F delta T. This consistency is achieved by pump management. By rising the pump velocity and actively managing water movement by the warmth exchanger primarily based on temperature, the system sustains the specified 10°F delta T. foundational rules of a TEN.
The efficiency of such a community improves with higher load variety, i.e., the inclusion of extra stakeholders with various thermal profiles. Moreover, for the reason that system is pump-controlled and doesn’t depend on balancing valves the system is self-balancing. In reality, the temperature cascade impact is proven to enhance with an rising variety of thermally various stakeholders related to the loop.
Within the earlier state of affairs, the pump’s movement price was 28 GPM. With the added load, it will increase to 54 GPM. Moreover, the inlet temperature to the commercial plant rises from 56.4°F to 69.6°F. Even with the additional 10 tons of cooling load, the pipe measurement for each the geothermal supply/sink loop and the ambient temperature loop stays 3 inches. Importantly, the return temperature to the warmth exchanger stays constant at a ten°F delta T with a 75℉-return design temp.
By inspecting the ambient temperature loop (ATL), we observe that the temperature vary improves considerably, aligning with the goal vary of 55°F–85°F. Beforehand, when there have been solely three masses, the loop’s temperature instantly after the commercial plant was a lot decrease at 36.4°F. Moreover, the warmth switch by HX-1 and the geothermal nicely area will increase considerably, from 140,000 BTU/h to 260,000 BTU/h, reflecting the extra 10 tons of cooling load.
It’s value noting that this theoretical state of affairs assumes no different customers of waste warmth, offering only a snapshot in time. In observe, there’ll at all times be numerous warmth consumption necessities, akin to home sizzling water manufacturing, pool heating, or snow melting. Thermal power networks (TENs) are designed not just for heating and cooling but in addition for these extra functions. In consequence, the BTUs from chilly storage can be utilized throughout a number of purposes past easy heating or cooling thus conserving the quantity of warmth to be rejected by HX-1 to a minimal
This simplified clarification underscores the system’s capability to adapt to elevated masses whereas sustaining effectivity and highlights the flexibility of thermal power networks in assembly various power calls for. Partly 2 of this text, we’ll dive into the specifics of learn how to join your private home or constructing to the TEN with a decoupled secondary loop and speak about learn how to management the pump to account for Thermal Range and Temperature Cascade Impact.
Marc Miller is a Mechanical Programs SME – Educator – Technical Author – Creator – Building Administration Guide with Dwelling – Egg Geo. He’s presently the Lead Creator on two textbook tasks with Egg Geo. He could also be reached at marcm@egggeo.com.
