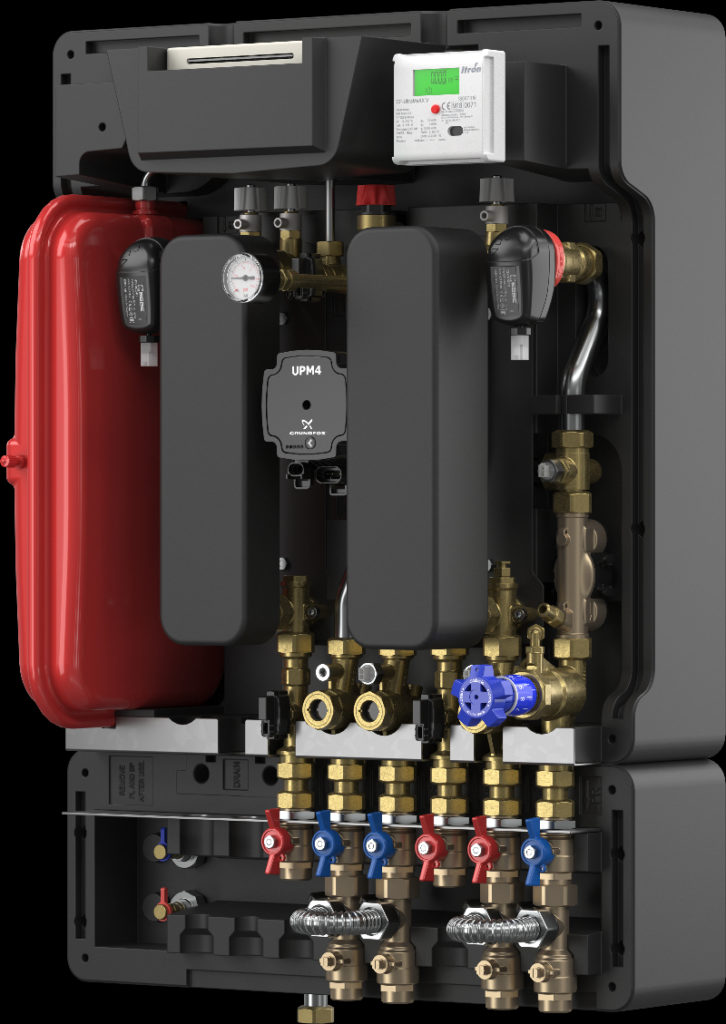

Mike Bennett, Essco Product Supervisor, explains how the corporate’s EDGE Warmth Interface Unit (HIU) has been designed to maximise the alternatives from Warmth Networks.
There are presently round 14,000 warmth networks within the UK with 480,000 prospects, offering round 2% of present complete warmth demand. With a view to decarbonise buildings and attain Internet Zero carbon emissions by 2050 within the UK, warmth networks are anticipated to play an more and more essential function.
To capitalise on the advantages that warmth networks supply, it’s vital that programs are designed and delivered with set up, efficiency, finish consumer management and ongoing upkeep in thoughts. This consists of the warmth interface unit (HIU), which is put in in every house to supply unbiased heating and home sizzling water, just like a standard boiler, however powered by centralised plant.
Our crew has been concerned within the design and provide of many various warmth interface models for district and communal heating programs over the previous 10 years. With a whole bunch of mixed tasks below our belts, it’s inevitable that we’ve skilled the great, the dangerous and the ugly.
Some typical points embody:
– Warmth losses from the HIU attributable to insufficient insulation
– Gradual supply of home sizzling water to retailers
– Expensive metering and billing know-how add-ons
– Issues accessing HIU elements for upkeep
– Sophisticated and time consuming pipework installs
Design priorities
All of it begins with the design, and to minimise warmth losses we determined that the HIU ought to be totally Insulated, together with the valve enclosure. The full annual warmth loss from the secondary programs throughout the constructing, together with pipework distribution, fittings and every other gear, is calculated and divided by the variety of dwellings. This calculated worth shall be equal to not more than 100 W/dwelling or 2.4 kWh/dwelling per day on common. On condition that this worth is taken into account to be the utmost acceptable warmth loss and never a goal to achieve, Essco recognise {that a} totally insulated HIU and first repair valve equipment ought to now be minimal requirement if these limits are to be achieved.
The following design precedence was delivering a quick response to sizzling water calls for and heating provide, which requires wonderful management. Essco makes use of ESBE PWM 2-port management valves, that are tamperproof, quick appearing and go from closed to completely open in simply two seconds. The 2 ESBE move management valves draw off solely the quantity of major move fee that’s obligatory to supply residents with the required consolation ranges, whereas sustaining most doable effectivity by way of low return temperatures to the plant room.
Set up and upkeep
Throughout the design course of, we aimed to remove the necessity for additional brackets or jigs for set up. Due to this fact, we created a hydraulically reversible unit that permits for all high, all backside, or heating backside entry with remaining connections high entry as normal, that means one dimension matches all. Along with this the EDGE is provided preconfigured with temperature set factors similar to heating, DHW and preserve heat, so it is extremely fast to set-up and fee.
To avoid wasting the installer from squeezing their palms into small areas or struggling to entry elements, all elements are totally accessible by way of the entrance of the unit, making set up and upkeep simple.
The EDGE HIU options inspectable strainers manufactured from web site glass for a fast visible test and simple upkeep. These supply two most important advantages to service engineers, indication and inspection. The sight glasses present indication of whether or not the water is flowing correctly, and whether or not the valve could also be blocked with particles and require cleansing. Ordinarily, yearly the HIU valves should be remoted, water drained and strainers opened simply to see if there’s such a difficulty. Inspectable strainers assist to cut back the variety of pointless inspections by offering year-round visibility.
There are additionally LEDs on the controller, pump and management valves to indicate the standing of the element for visible fault discovering. While off-site, engineers can use our Net App for on-line entry to the HIU controller remotely, with superior settings for fast commissioning.
